Jungle Rain Maxi - 8 bar whisper pump for rain systems with up to 16 nozzles

This powerful, latest-generation diaphragm pump delivers 8 bar water pressure with a total consumption of only 50 W and can supply up to 16 mist nozzles. Thanks to 4-cylinder technology, this pump operates even more quietly than comparable 3-cylinder diaphragm pumps and is therefore barely audible. The high output pressure ensures a more even and finer spray pattern with all connected nozzle types. With our mist nozzles (~150ml/min), the pump achieves, for example, approx. 8 bar with 2-6 nozzles, 6 bar with 8-10 nozzles, and approx. 4 bar with 12-16 nozzles. Auto-stop function above 8 bar. Self-priming up to approx. 1m.

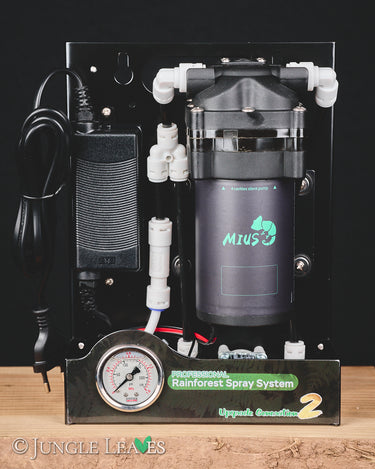

In this premium version, the pump is vibration-isolated mounted on a black painted steel base plate, which can be screwed directly to the wall or into a cabinet, for example. A manometer is also integrated into the plate, allowing the operating pressure to be monitored. A solenoid valve is installed parallel to the pump, which immediately depressurizes the system when power is off, to prevent dripping from the nozzles.

The hose connections are 1/4" (approx. 6.3 mm) on both sides with a quick-connect system. However, existing systems with 6/4 mm hoses can also be connected.
